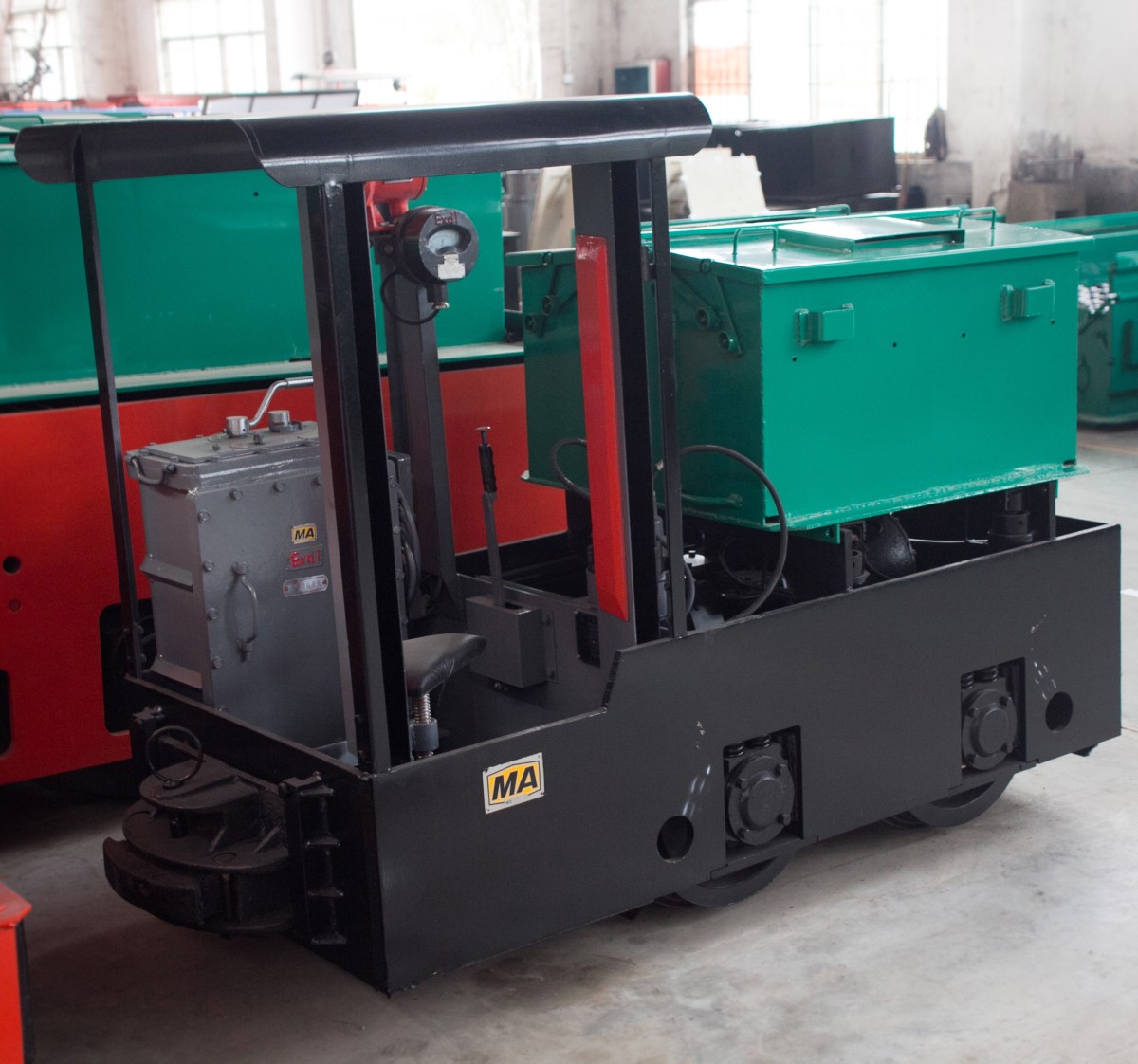

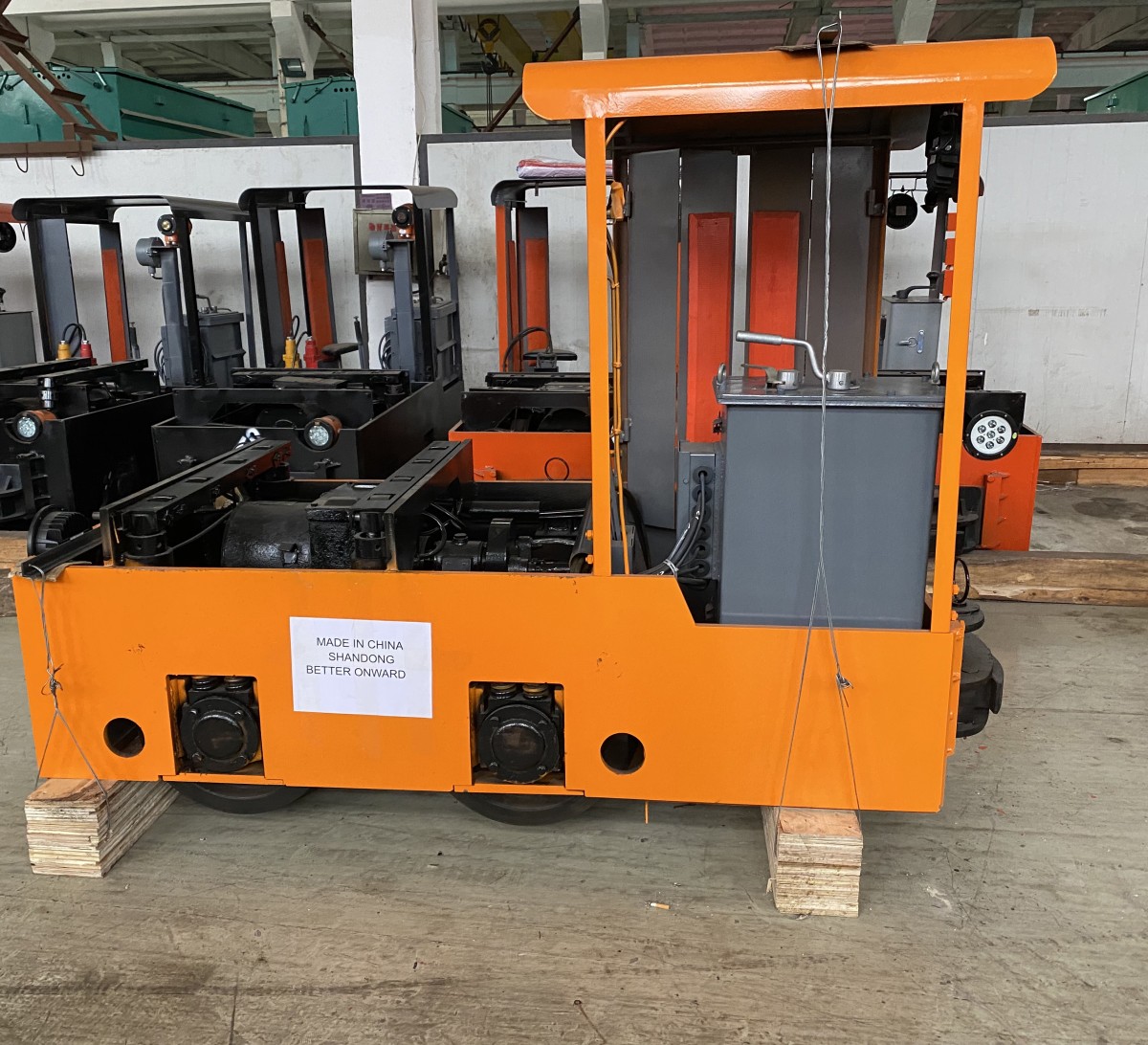

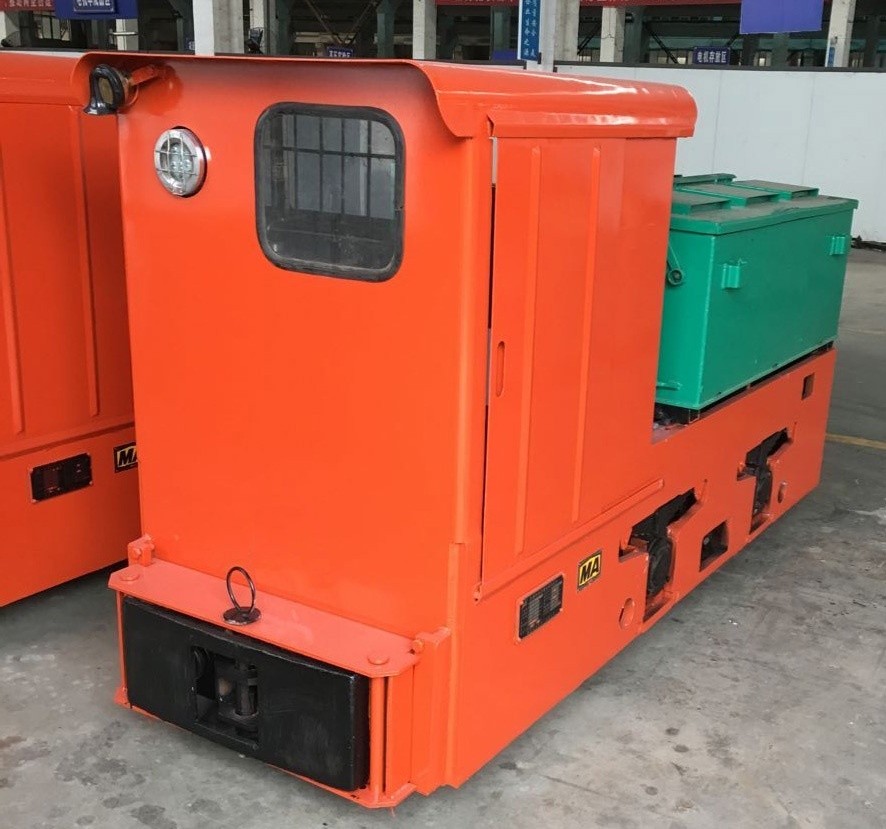

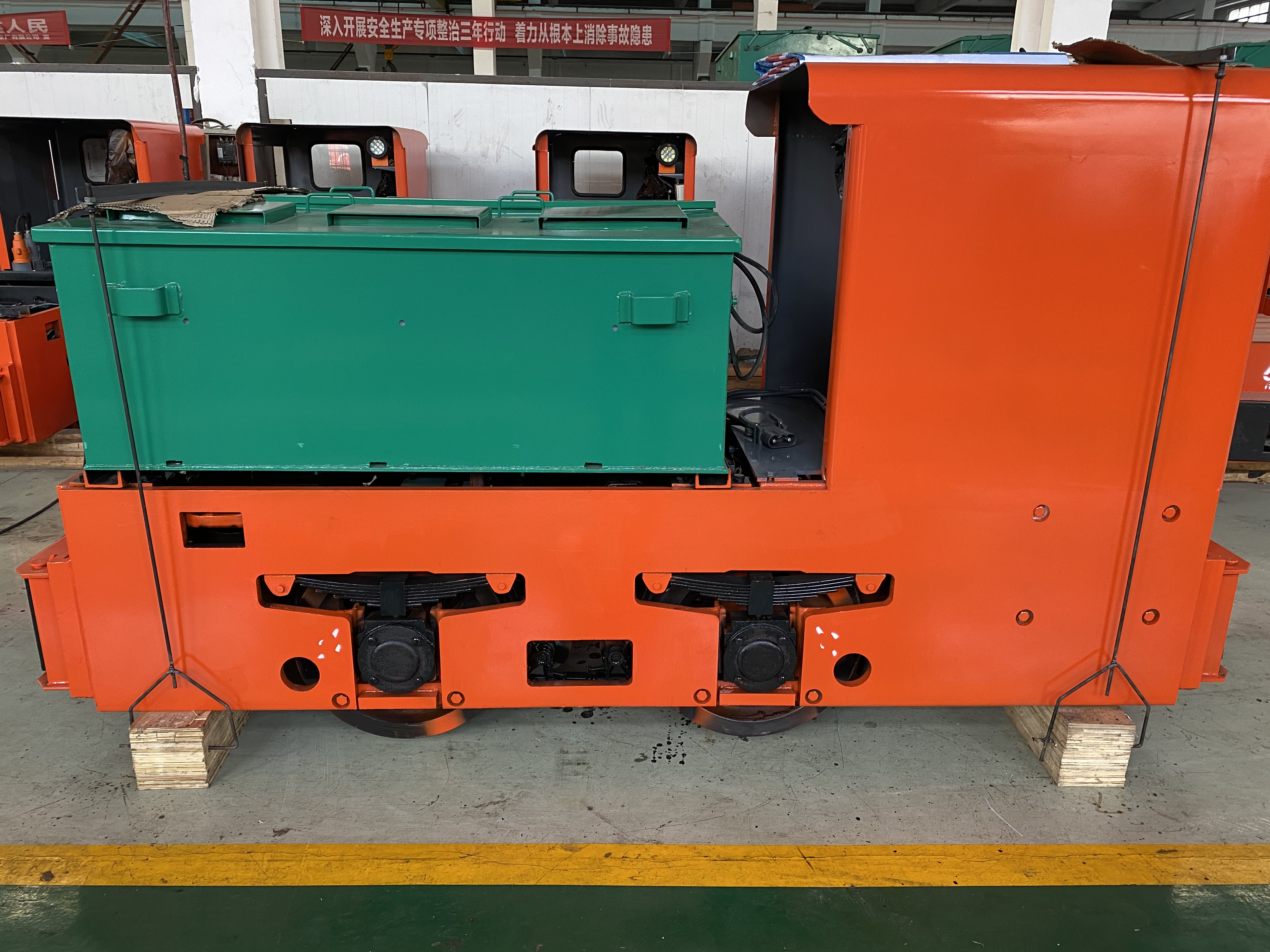

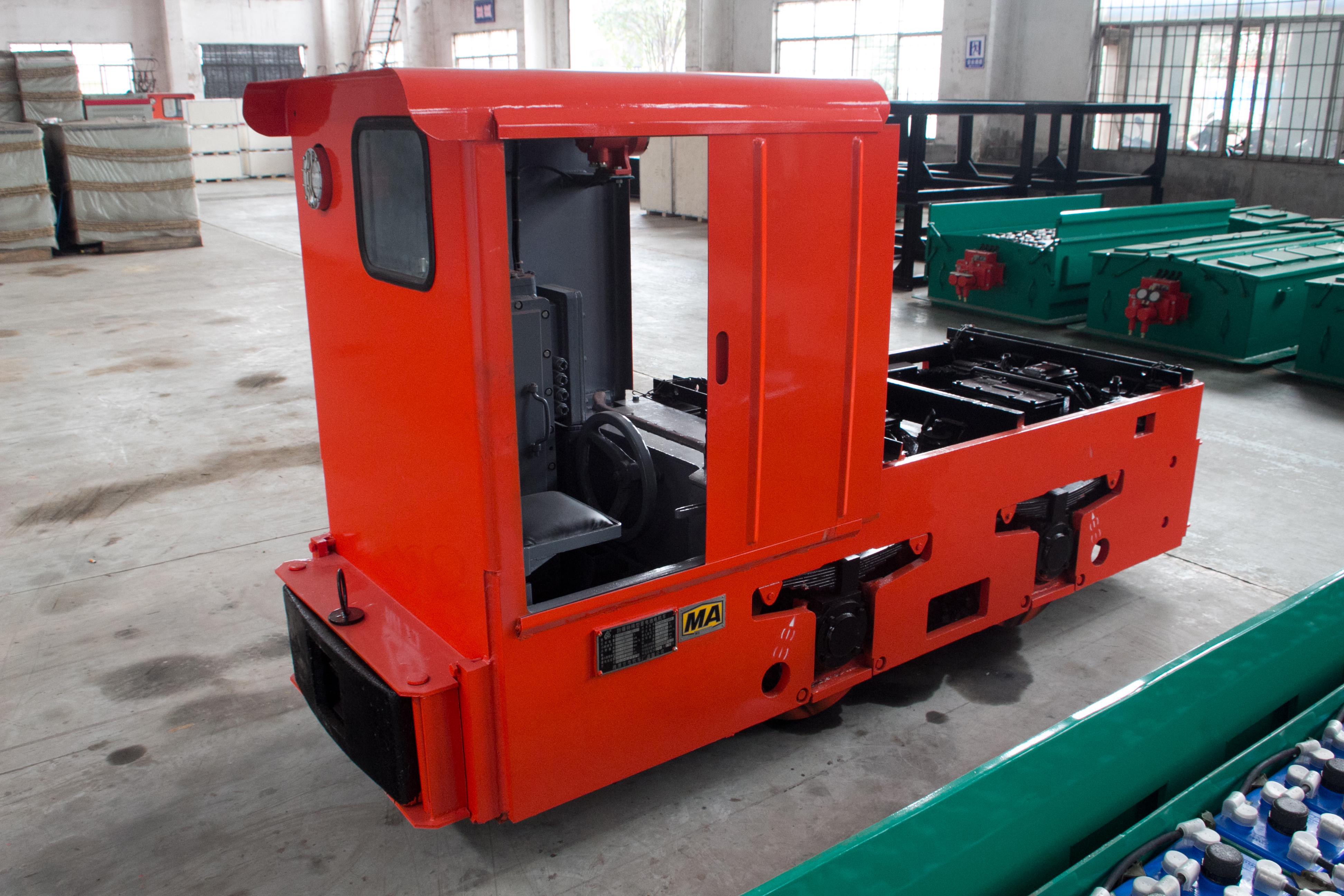

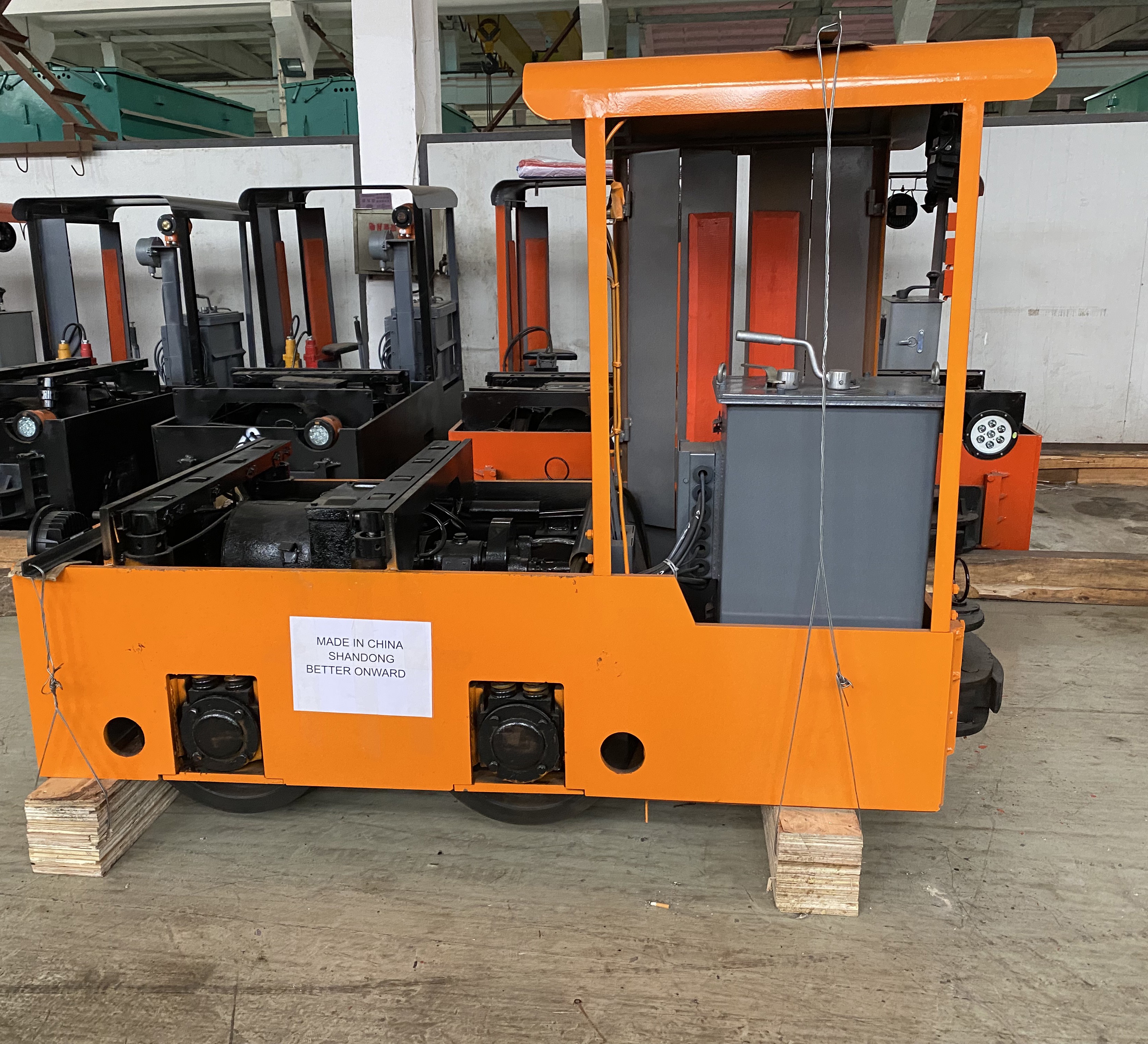

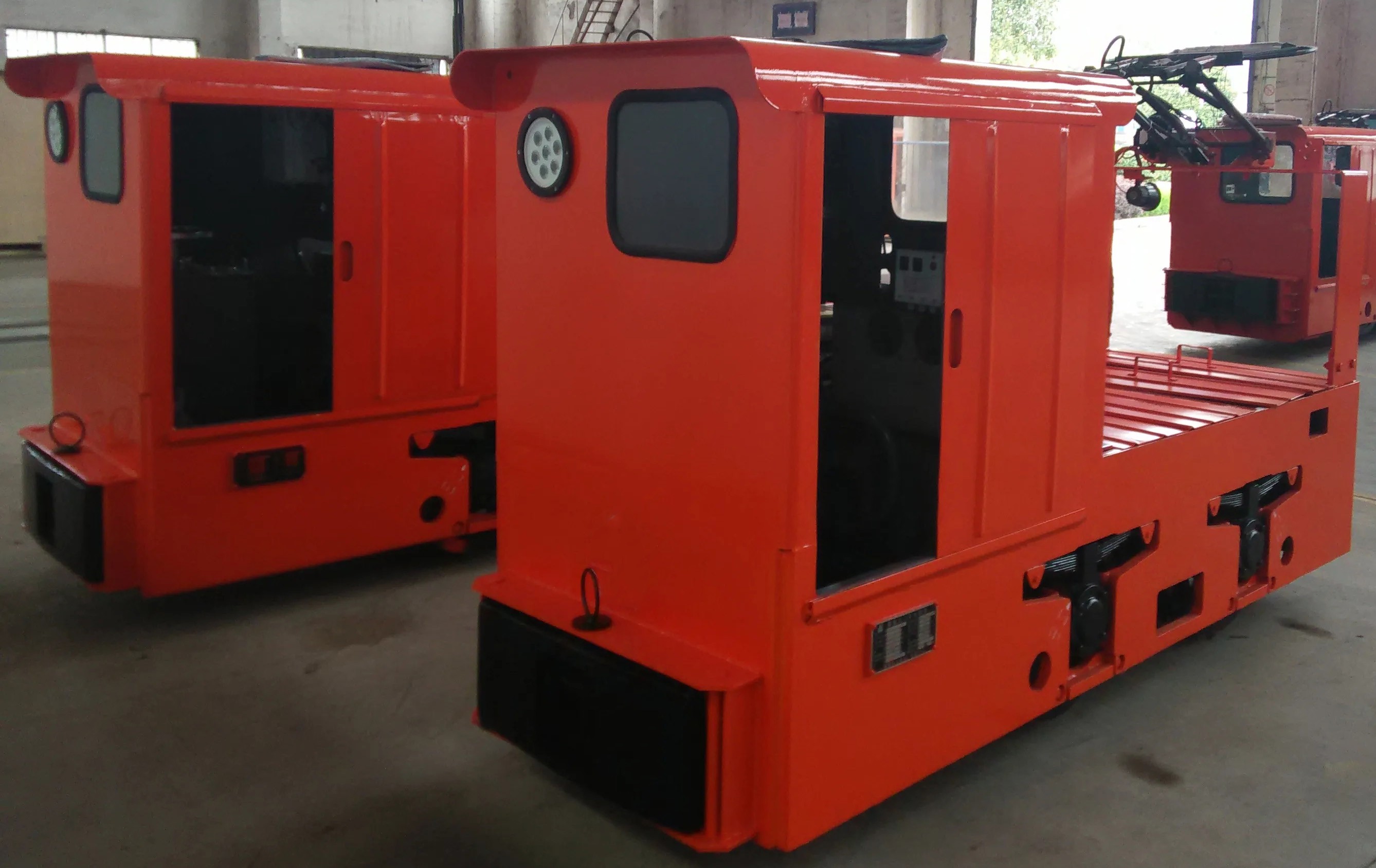

CTY2.5 CTY5 Electric Battery Locomotive

CTY2.5 CTY5 Electric Battery Locomotive
Introduction
Contact Us

PRODUCT DESCRIPTION

Electric Battery Locomotive


We Shandong Better Onward Machinery Co., Ltd. is one of the top manufacturers of narrow gauge electric locomotives in China.

Our company having more than 20 years experience in producing 1.5T to 30T locomotive.


Main Features: small overall dimension, short wheelbase, flexible, simple structure, easy maintenance, suitable for small and medium-size mine transporation.



Model Name

CTY2.5/4,6,7,9G(B)

CTY5/4,6,7,9G(B)

Adhesive Weight

2.5 Ton

5 Ton

Track Gauge

457,600,762 or 900mm

600,762 or 900mm

Hourly System Traction

2.55KN

7.06KN

Max. Traction Force

6.13KN

12.26KN

Hourly Speed

4.54km/h

7km/h

Supply Voltage

48V

90V

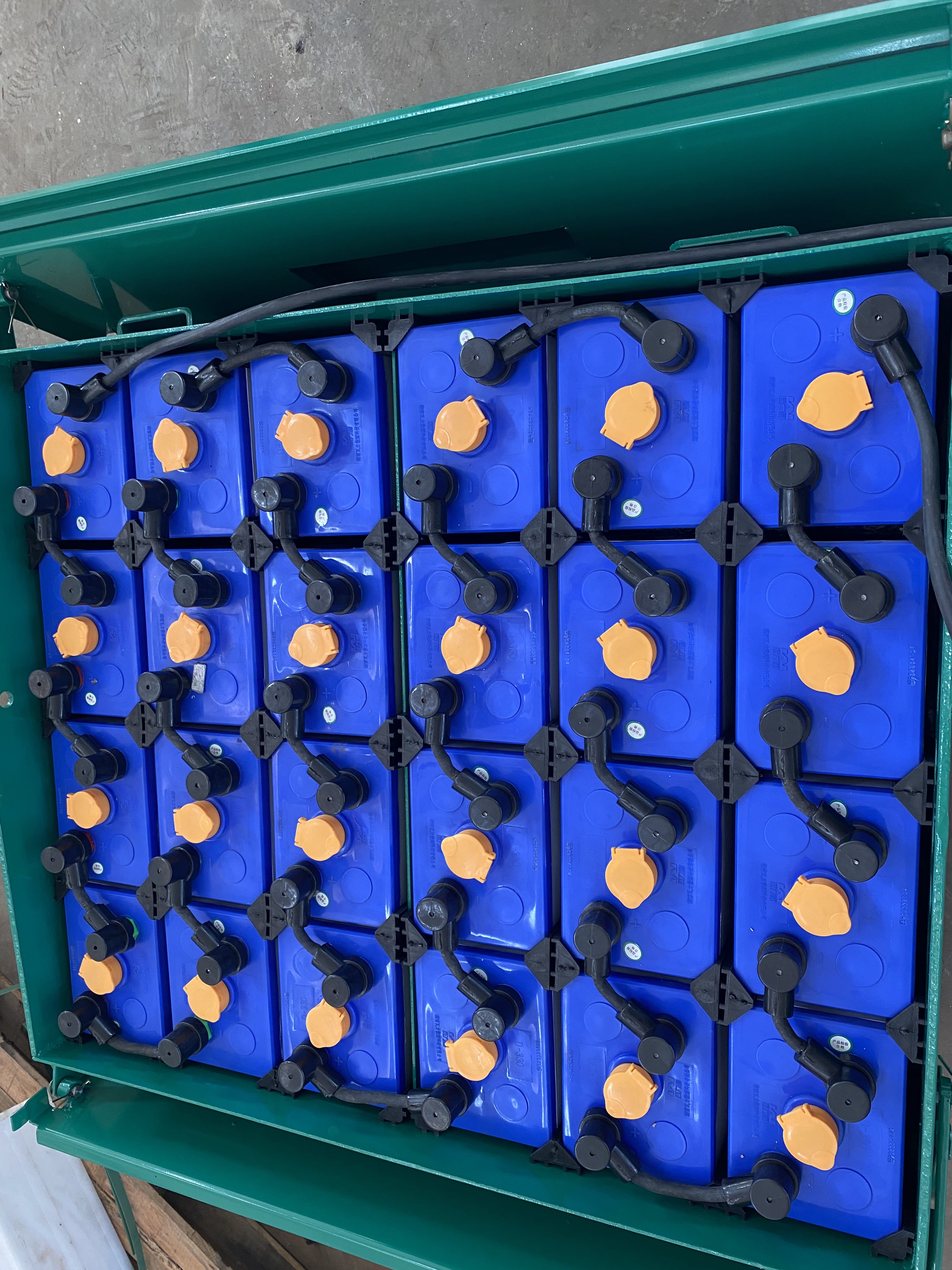

Battery Capacity

330 Ah ( 5 hours capacity)

385Ah ( 5 hours capacity)

Power of Electric Motor

3.5KW*1

7.5 KW*2

Length

2360mm

2960mm

Width

914, 1076 or 1214mm

920, 1082 or 1220mm

Height

1550mm

1550mm

Wheelbase

650mm

850mm

Wheel Diameter

Φ460mm

Φ520mm

Height of Traction

320mm

320mm

Min. Turning Radius

5m

6m

Speed Regulating Mode

Resistance or IGBT

Resistance or IGBT

Braking Mode

Mechanical Brake

Mechanical Brake
